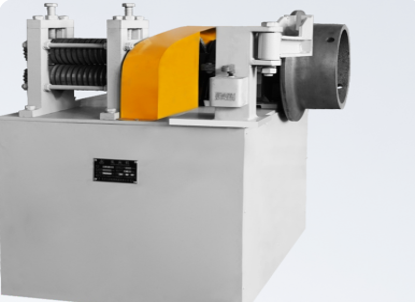

GS350 Winding Wrapping Machine

The GS350 winding wrapping machine is a professional protective wrapping equipment specially developed by Wongsteel (Beijing Yijing Technology) for metal wire coils, cables and other products. Its core function is to perform spiral wrapping on finished wire coils and cables with tapes such as steel tape, plastic tape and non-woven fabric, realizing moisture-proof, rust-proof and scratch-proof protection of products, while improving the appearance regularity of products. It is widely used in metal wire products, cable manufacturing, hardware processing and other industries, serving as core supporting equipment for wire drawing production lines and cable production lines.

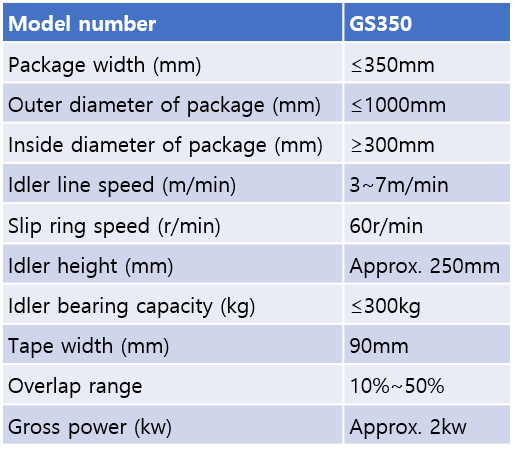

The technical parameters of the equipment are fully adapted to the processing needs of small and medium-sized wire coils: the maximum wrapping width is ≤350mm, the applicable coil outer diameter is ≤1000mm, the inner diameter is ≥300mm, the idler line speed is adjustable from 3 to 7m/min, the slip ring speed is stable at 60r/min, the idler bearing capacity is ≤300kg, it is equipped with 90mm wide wrapping tape, the wrapping overlap rate can be flexibly adjusted within 10%~50%, the total power is about 2kw, with low energy consumption and stable operation. The equipment adopts a control mode combining mechanical transmission and frequency conversion speed regulation, which can accurately match the production line rhythm, ensure uniform wrapping tightness and consistent overlap rate, avoid missing wrapping, loose wrapping, wrinkles and other problems, and ensure stable and reliable wrapping quality.

The main body of the equipment is made of high-strength steel structure, the core transmission components are made of high-quality wear-resistant materials, equipped with precision bearings and lubrication system, with long service life and low maintenance cost. The operation interface is simple, debugging is convenient, and it can quickly adapt to the wrapping needs of different specifications of wire coils. Complete safety protection devices are in line with industrial production safety standards to ensure the safety of operators. Compared with manual wrapping, the GS350 winding wrapping machine can greatly improve production efficiency, reduce labor costs, and ensure the consistency of wrapping quality, helping enterprises improve product market competitiveness. Wongsteel (Beijing Yijing Technology) can provide customized wrapping machine solutions and comprehensive after-sales technical support according to customers' coil specifications, wrapping tape types and capacity requirements, helping customers optimize production processes and improve product quality.
