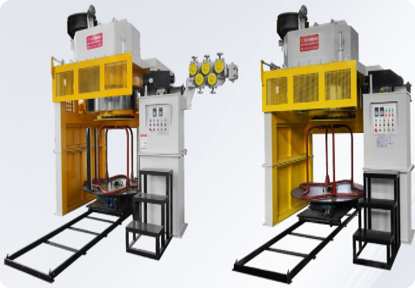

Inverted Wire Drawing Machine

The inverted wire drawing machine is a high-efficiency drawing equipment specially developed by Wongsteel (Beijing Yijing Technology) for the metal wire processing industry. Adopting an inverted structure design, it achieves significant improvements in floor space, operational convenience and production efficiency compared with traditional horizontal wire drawing machines. It is widely used in cold drawing and diameter reduction processing of various metal wires such as carbon steel, alloy steel, stainless steel and non-ferrous metals, serving as core production equipment for wire products, hardware processing, metal products and other industries.

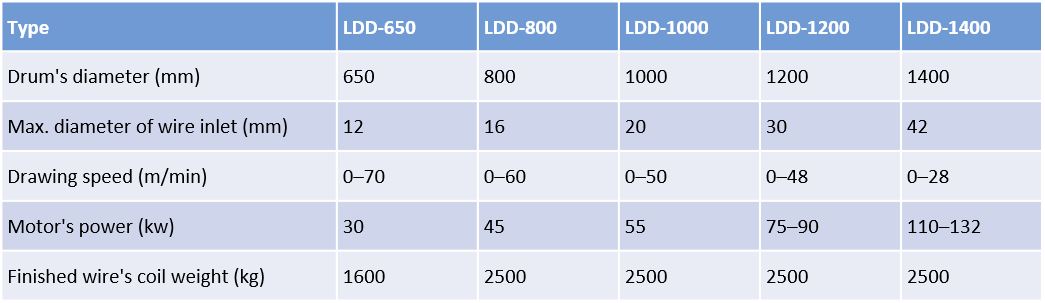

Our LDD series inverted wire drawing machines cover full specifications including LDD-650, LDD-800, LDD-1000, LDD-1200 and LDD-1400, which can adapt to different processing requirements: the maximum inlet wire diameter ranges from 12mm to 42mm, the drawing speed is adjustable from 0 to 70m/min, the motor power is optional from 30kw to 132kw, and the finished wire coil weight can reach up to 2500kg, meeting the full-scenario processing needs from small wires to large coils. The equipment is equipped with PLC control system and variable frequency speed regulation technology to realize precise control of the drawing process, ensuring the dimensional accuracy and surface quality of the drawn wire. The inverted structure design makes wire coiling smoother, avoiding the wire winding problem of traditional equipment, greatly improving production efficiency and reducing manual operation intensity.

The core components of the equipment are made of high-strength wear-resistant materials, equipped with a professional lubrication and cooling system, effectively extending the service life of the equipment and reducing maintenance costs. Complete safety protection devices are in line with industrial production safety standards to ensure the safety of operators. Whether used for drawing processing of various metal wires such as steel bars, steel wires, copper wires and aluminum wires, or for pretreatment and deep processing of wires, the inverted wire drawing machine can provide stable and efficient processing performance, helping enterprises increase production capacity, optimize product quality and reduce production costs, making it an excellent choice for metal wire processing enterprises to upgrade production equipment. Wongsteel (Beijing Yijing Technology) can provide customized equipment solutions and comprehensive after-sales technical support according to customers' actual production needs, helping customers achieve efficient production.
