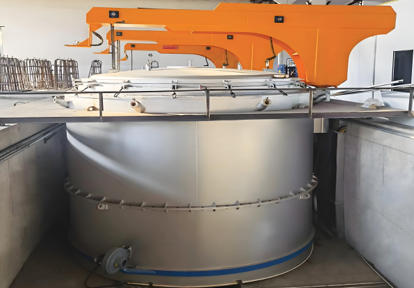

HSBP Strong Convection Well Cover Spheroidizing Annealing Furnace (Electrical Heating)

The HSBP Strong Convection Well Cover Spheroidizing Annealing Furnace is a high-end electrical heating equipment developed by Wongsteel (Beijing Yijing Technology) for the heat treatment of metal wire rods and bars. It is mainly used for spheroidizing annealing and softening annealing of low carbon steel, medium carbon steel, alloy steel and bearing steel. Through strong convection heat circulation technology, it achieves uniform temperature field distribution in the furnace, ensuring uniform structure, qualified spheroidization rate and excellent cold working performance of the treated steel. It is widely used in industries such as steel wire, fasteners, bearings and precision machinery, and is a key heat treatment equipment to optimize the internal structure of steel and improve subsequent processing performance.

The equipment covers the full series from **HSBP-180/220 to HSBP-360/320** in specifications. The furnace loading diameter ranges from 1800mm to 4000mm, loading height from 2950mm to 4750mm, total furnace height from 5100mm to 9100mm, total weight of the furnace (including furnace body) from 3200T to 9000T, and jib crane capacity from 13T to 32T. The furnace capacity of 24-32 tons (reference data) can be flexibly matched according to customer needs. For wire rods/bars of different specifications (≤10mm, >10mm), the equipment can accurately adjust annealing process parameters, balance processing efficiency and product quality, and realize stable, efficient and automated batch heat treatment.

It has remarkable core technical advantages: adopting electrical heating mode, with precise temperature control and controllable heating/cooling rate, adapting to heat treatment needs of multiple steel grades and specifications; the strong convection circulation structure ensures consistent temperature in each area of the furnace, avoiding local overheating or insufficient annealing, and improving product consistency; the well-type structure and sealed furnace cover design reduce heat loss and energy consumption, and is equipped with complete safety protection and intelligent control system, which is easy to operate and stable in operation, complying with industrial safety standards.

Compared with traditional annealing equipment, the HSBP strong convection well cover spheroidizing annealing furnace has achieved comprehensive upgrades in temperature control accuracy, product consistency, energy consumption control and operational convenience. It can effectively reduce the heat treatment cost of enterprises, improve production capacity and product quality. Wongsteel (Beijing Yijing Technology) can provide customized furnace size, process solutions as well as installation and commissioning, technical training and after-sales maintenance services according to customers' steel types, wire/bar specifications and capacity requirements, helping metal product enterprises improve heat treatment production lines, optimize processes and enhance core competitiveness.
