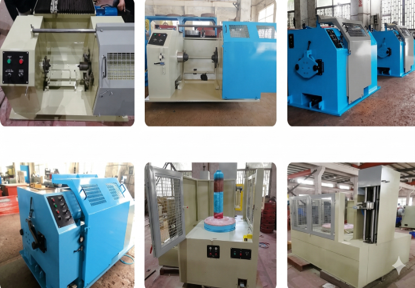

Horizontal/Vertical Spooler

The horizontal/vertical spooler (also known as spool take-up machine) is a core supporting equipment specially developed by Wongsteel (Beijing Yijing Technology) for metal wire processing production lines. It is mainly used for neat coiling of metal wires after processes such as wire drawing, annealing and copper plating, and can perfectly match various inverted wire drawing machines, straight-through wire drawing machines and other equipment. It is widely used in the coiling process of various metal wires such as steel wire, copper wire, aluminum wire and alloy wire, and is an essential production equipment for wire products, hardware processing, cable manufacturing and other industries.

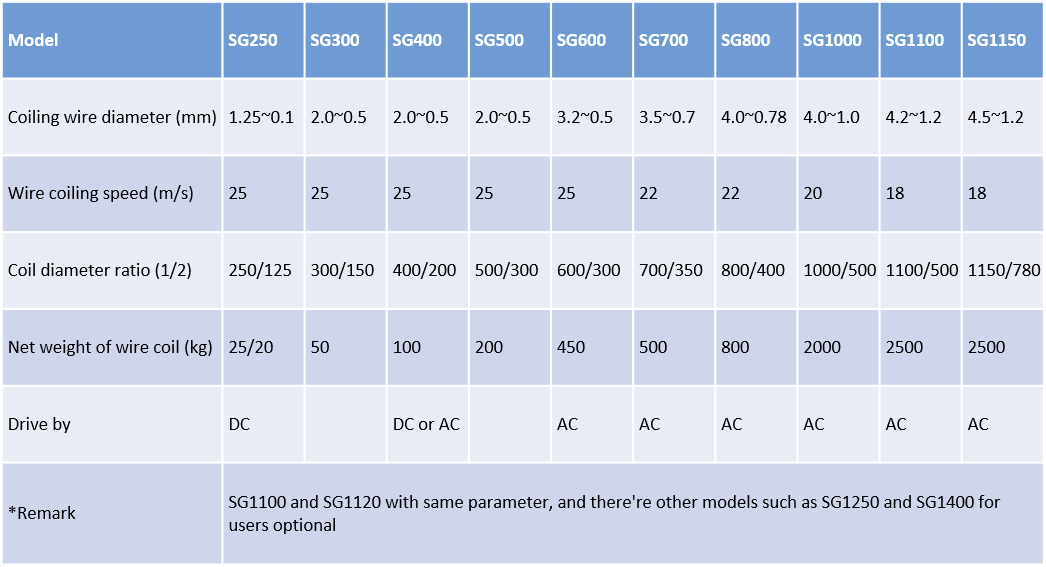

Our SG series spoolers cover full specifications from SG250 to SG1150, and also support customized models such as SG1250 and SG1400, which can meet the needs of different production scenarios: the applicable wire diameter range covers 0.1mm to 4.5mm, the maximum coiling speed can reach 25m/s, the net weight of finished wire coils is optional from 20kg to 2500kg, and the coil diameter ratio covers the full series of specifications from 125mm to 780mm, adapting to the full-scenario coiling needs from small precision wires to large coils. The equipment supports two driving modes: DC and AC, which can be flexibly selected according to the production line working conditions. It adopts a high-precision wire arranging mechanism and tension control system to ensure neat coiling of wires without messy wires or wire pressing, guaranteeing the smoothness of subsequent wire processing and greatly improving production efficiency.

The main body of the equipment is made of high-strength steel structure, the core transmission components are made of high-quality wear-resistant materials, equipped with a professional lubrication system, ensuring stable and reliable operation, long service life and low maintenance cost. Complete safety protection devices are in line with industrial production safety standards to ensure the safety of operators. The horizontal model is suitable for high-speed coiling of small and medium wire diameters and small and medium coil weights, while the vertical model is suitable for heavy-duty coiling of large wire diameters and large coil weights. The two structures can meet the layout and capacity requirements of different production lines. Wongsteel (Beijing Yijing Technology) can provide customized spooler solutions and comprehensive after-sales technical support according to customers' production line configuration, wire specifications and capacity requirements, helping customers optimize production processes, improve product quality and reduce operating costs, making it an excellent choice for metal wire processing enterprises to upgrade supporting equipment.
