Wet Wire Drawing Machine2

The wet wire drawing machine is a high-end drawing equipment developed by Wongsteel (Beijing Yijing Technology) for the precision processing of non-ferrous metal fine wires. The core **wet lubrication drawing process** is adopted. Special wire drawing oil/liquid is used to forcibly cool and lubricate the wire and mold, greatly reducing friction heat and wire damage during the drawing process. It achieves high-precision and low-loss drawing effects. It is widely used for drawing and reducing the diameter of soft metal wires such as copper wires, aluminum wires, copper-clad aluminum wires, and alloy wires. It is key production equipment for electronic wires, communication cables, precision hardware, enameled wires and other industries.

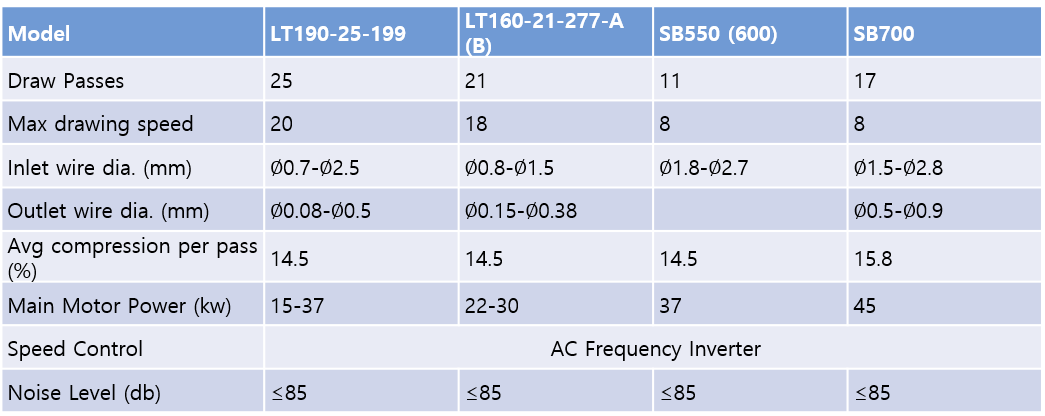

Our wet wire drawing machines cover two product lines: LT series (LT190-25-199, LT160-21-277-A(B)) and SB series (SB550(600), SB700), which can meet the processing needs of different production capacities and wire diameter specifications. The equipment covers 11 to 25 drawing passes, with a maximum drawing speed of up to 20m/s. It is suitable for processing full-specification wires with an inlet diameter of 0.7mm to 2.8mm and an outlet diameter of 0.08mm to 0.9mm. The average compression ratio per pass is stably between 14.5% and 15.8%, ensuring the dimensional accuracy and consistency of the drawn wires.

The equipment is equipped with an **AC frequency conversion speed regulation system**, which realizes precise adjustment of drawing speed and synchronous operation of multiple machines, adapting to the processing parameters of different specifications of wires. The core transmission components are made of high-strength wear-resistant materials and precision bearings, equipped with a closed lubrication system, with stable operation and low noise (≤85db), greatly reducing workshop noise pollution and equipment maintenance costs. The wet process effectively avoids wire oxidation, scratching and brittleness in dry drawing. The drawn wires have high surface finish and good ductility, and can be directly used for subsequent tin plating, stranding, enameled and other deep processing processes.

The overall equipment adopts a modular design, with a compact structure and small floor space, and is easy to operate and maintain. It is equipped with a visual operation panel and safety protection devices, complying with industrial safety standards to ensure operator safety and production continuity. Wongsteel (Beijing Yijing Technology) can provide customized wet wire drawing machine solutions, supporting wire drawing oil selection and professional technical training and after-sales support according to customers' wire materials, wire diameter ranges and production capacity requirements, helping precision metal wire processing enterprises improve product quality, expand production capacity and reduce comprehensive production costs.
