Inverted Type Wire Drawing Machine Set

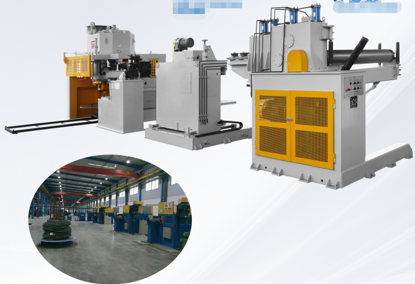

WongSteel Inverted Type Wire Drawing Machine Set is a complete set of drawing equipment developed by Beijing Yijing Technology specially for thick-specification metal wire processing. It consists of three core units: **Inverted Type Wire Drawing Machine, Wire Top Pointing Machine and Uncoiler Machine**. With core advantages of large load capacity, high efficiency and high stability, it is widely used in drawing processing of thick-specification wires such as steel bars, steel strands, anchors and hardware components, adapting to various materials such as low carbon steel, high carbon steel and alloy steel, and is the core production equipment for heavy-duty wire deep processing.

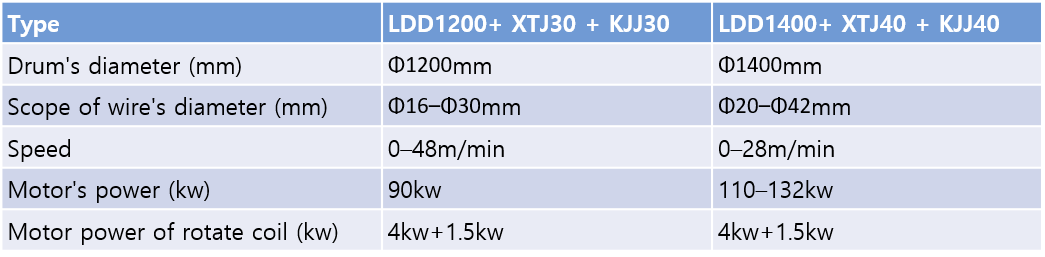

The machine set provides two standard configurations: LDD1200+XTJ30+KJ30 and LDD1400+XTJ40+KJ40, with core parameters fully covering mainstream thick wire processing scenarios: LDD1200 series has a drum diameter of Φ1200mm, suitable for wire diameter Φ16-Φ30mm, drawing speed 0-48m/min, main motor power 90kw, coil rotation motor power 4kw+1.5kw; LDD1400 series has a drum diameter of Φ1400mm, suitable for wire diameter Φ20-Φ42mm, drawing speed 0-28m/min, main motor power 110-132kw, coil rotation motor power 4kw+1.5kw. The inverted structure design can effectively reduce wire drawing stress, avoid wire twisting problems of traditional drawing machines, and improve the mechanical properties and surface quality of finished products; the supporting wire top pointing machine realizes pre-processing of wire ends, and the uncoiler ensures stable supply of raw materials. The coordinated operation of the three units greatly improves the automation level and production efficiency of the production line.

The equipment adopts optimized mechanical structure and electronic control system, with simple operation and convenient maintenance, and can be customized according to customer's production capacity, wire diameter range and process requirements. Relying on more than 20 years of experience in steel processing and equipment supply of WongSteel, we provide full-process services from equipment selection, installation and commissioning, technical training to after-sales maintenance, with 24-hour rapid response to customer needs, providing highly reliable and cost-effective complete production solutions for heavy-duty wire processing enterprises, helping enterprises achieve cost reduction, efficiency improvement and product quality upgrade.
